Today we ran new experiments to characterize AZ dynamics.

The protocol is as follows:

  • Pb8 starts at position (175.0,45.0)
  • AZ movement, constant speed, EL is constant (0.020°/s), 10° range, clockwise
  • Reference signal: sinusoidal, 2 KHz, 18V rms
  • Angle acquisition: RDC-19200

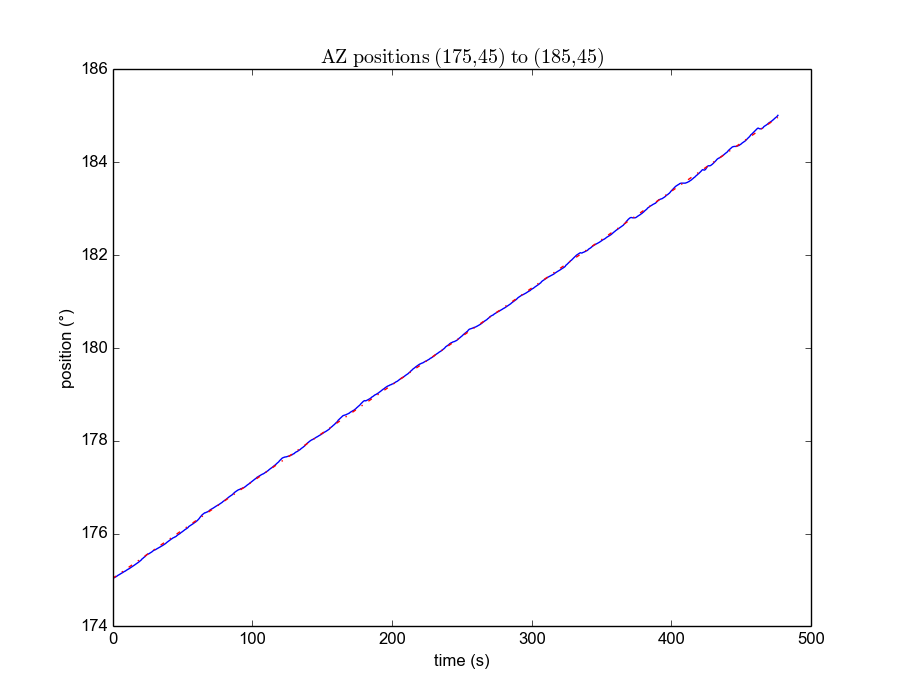

The following picture shows the evolution of AZ in blue with the target trajectory (dashed red curve), constant speed value is 0.020°/s:

resolver-20150529-position-az-mvt-c-900

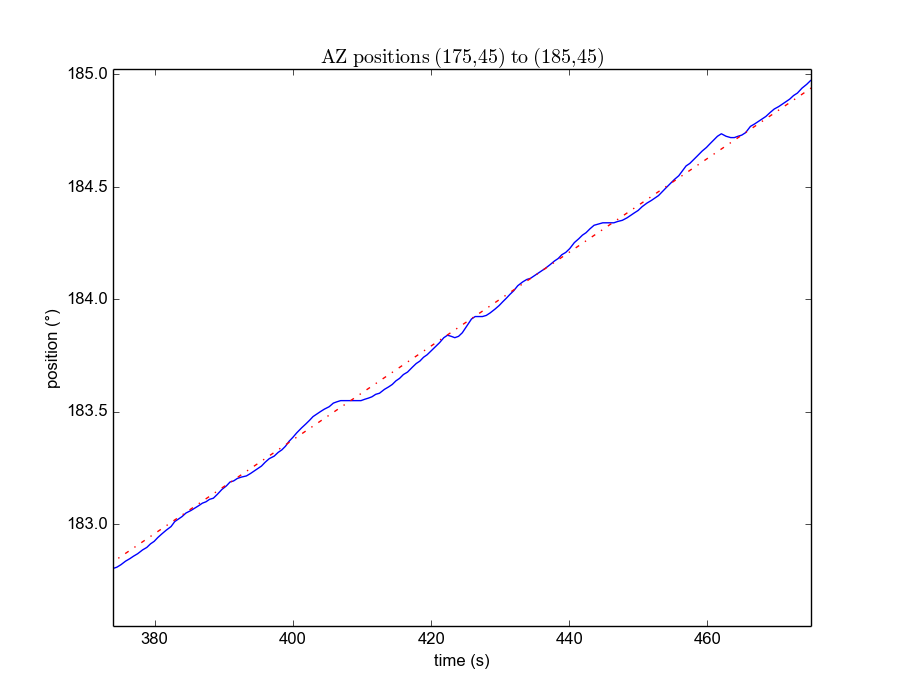

Now a zoom between 350 and 480 seconds:

resolver-20150529-position-az-mvt-c-900-zoom

We can observe fluctuations on the (measured) trajectory. Again, around 410 s, PB8 seems at rest.

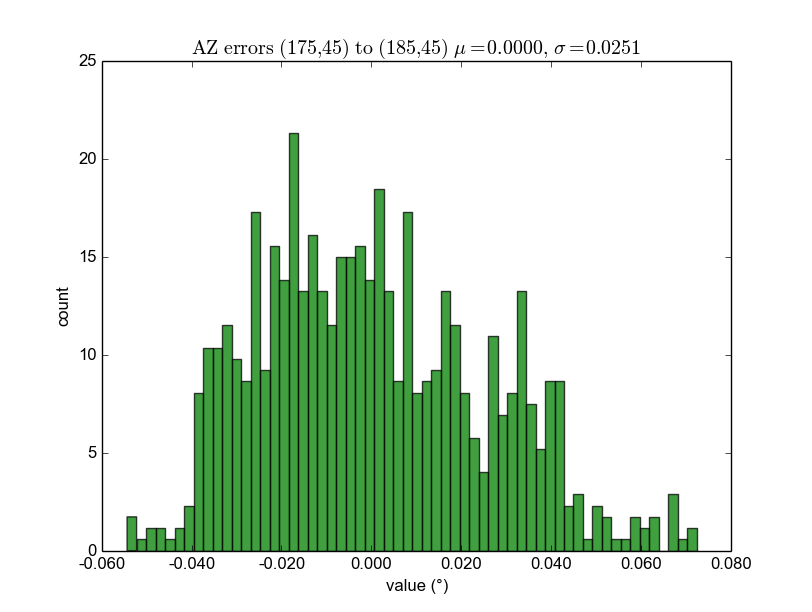

We have estimated the distribution of errors for AZ (differences between the actual trajectory and the target):

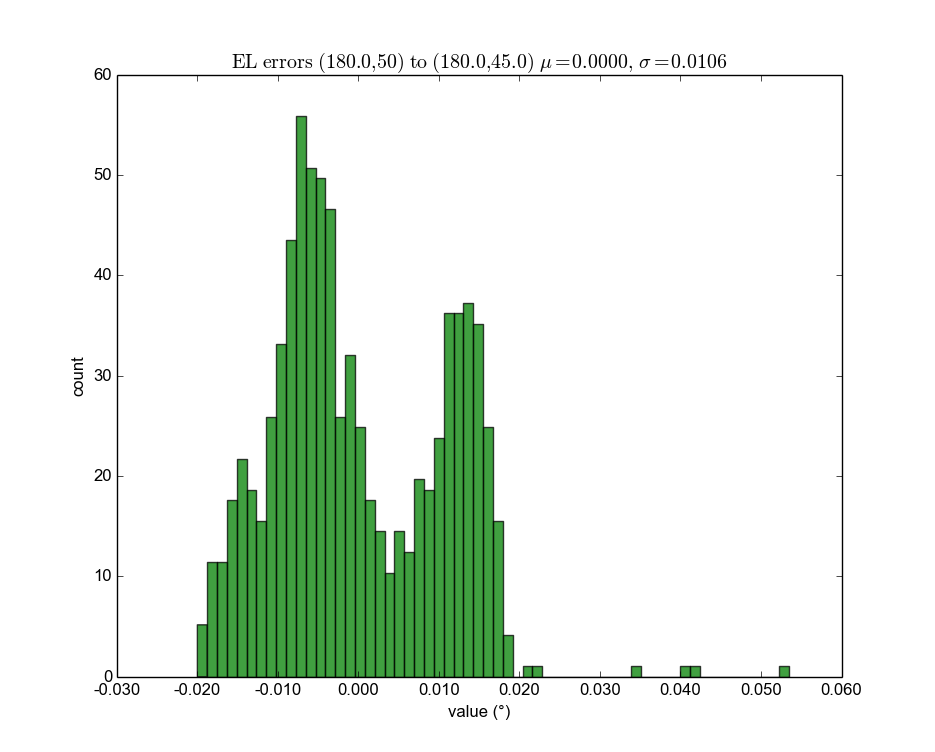

resolver-20150529-distrib-az-mvt-c-900We ran a similar test on EL (trajectory at a constant speed):

resolver-20150529-distrib-el-mvt-u

If we compare both distributions, EL is much more acceptable than AZ…

We could incriminate the resolvers (the electronic processing is the same, we alternate the inputs), next step…
